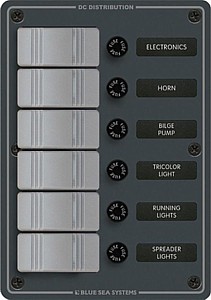

WATERPROOF SWITCH PANEL

PN 8053 - 6 Position-Slate Gray

US$ 160  Best offer!

New Old Stock

  • Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in switches
  • Watertight mounting gasket included
  • Countersunk mounting holes throughout
  • Heavy 1/8"aluminum material
  • Two-part polyurethane slate gray finish
  • Industry standard height and width
  • Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
  • Completely wired and ready to install
  • Includes set of common DC labels

     NOTE: Waterproof panel labels are not backlit



Specifications

Fuse Holder Rating 20 Amperes maximum (15 Ampere fuses included)
Voltage 12 or 24 Volts DC
Maximum Voltage Rating 24 Volts DC
Switch Rating 20 Amperes@12 Volts DC, 15 Amperes@24 Volts DC
Panel Cumulative Rating 45 Amperes
Weight Lb (Kg) 1.20 (0.54)
Width in" (mm) 5.25 (133.35)
Height in" (mm) 7.50 (190.50)
