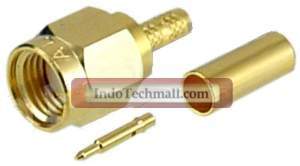

SMA-Male Crimp Connector





Electrical

Impedance

50 Ohms

Frequency Range

DC ~ 11 GHz

Voltage Rating

500 Volts Peak

Dielectic Withstanding Voltage

1000 Volts RMS

Insertion Loss

.20 dB Max.

Mechanical

Mating

1/4-36 UNS Threading Coupling

Mating Torque

15 inch pounds (170 N.cm) Max.

Cable Attachment

Hex Braid Crimp

Center Conductor Cable Attachment

Crimp or Solder

Cable Retention

45 lbs. Pull

Material

Body

Gold Plated Brass

Contact

Gold Plated Brass

Insulator

TFE

Ferrule

Gold Plated Brass

Environmental

Temperature Range

-55C(-67F) to +85C(+185F)

Temperature Cycling

MIL-Std. 202 Method 102 (Test Condition C)

Weatherproof

All SMA Connectors are Weatherproof
