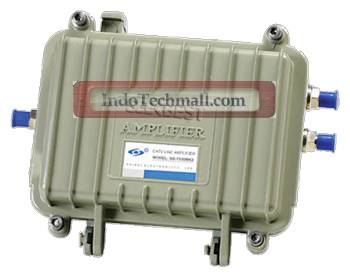

CATV Power Amplifier
CATV Booster
Rp 600.000,- (hitung 2 kg)
Feature:
Suitable for branch or building distribution power amplification in CATV system
Manual control of gain and slope
High accuracy slope adjustment in a wide range
Aluminum die-cast housing, water-proof, fine screening
|
ITEM |
PARAMETER |
|
Frequency range (MHz) |
45~750 |
|
Nominal gain (dB) |
30 |
|
Flatness in band (dB) |
±0.75 |
|
Max.output level (dBμV) |
118 |
|
Norminal input level (dBμV) |
72 |
|
Gain adjustment range (dB) |
0~20 |
|
Slop adjustment range (dB) |
0~18 |
|
Noise factor (dB) |
≤7 |
|
Testing port (dB) |
-10 |
| Return loss (dB) |
≥14 |
|
Thunderstroke immunity (KV) |
5 (10/700μS) |
|
Power supply |
AC220V ±10% 50Hz |
|
Power consumption (W) |
10 |
|
Dimension (mm) |
210X170X80 |
